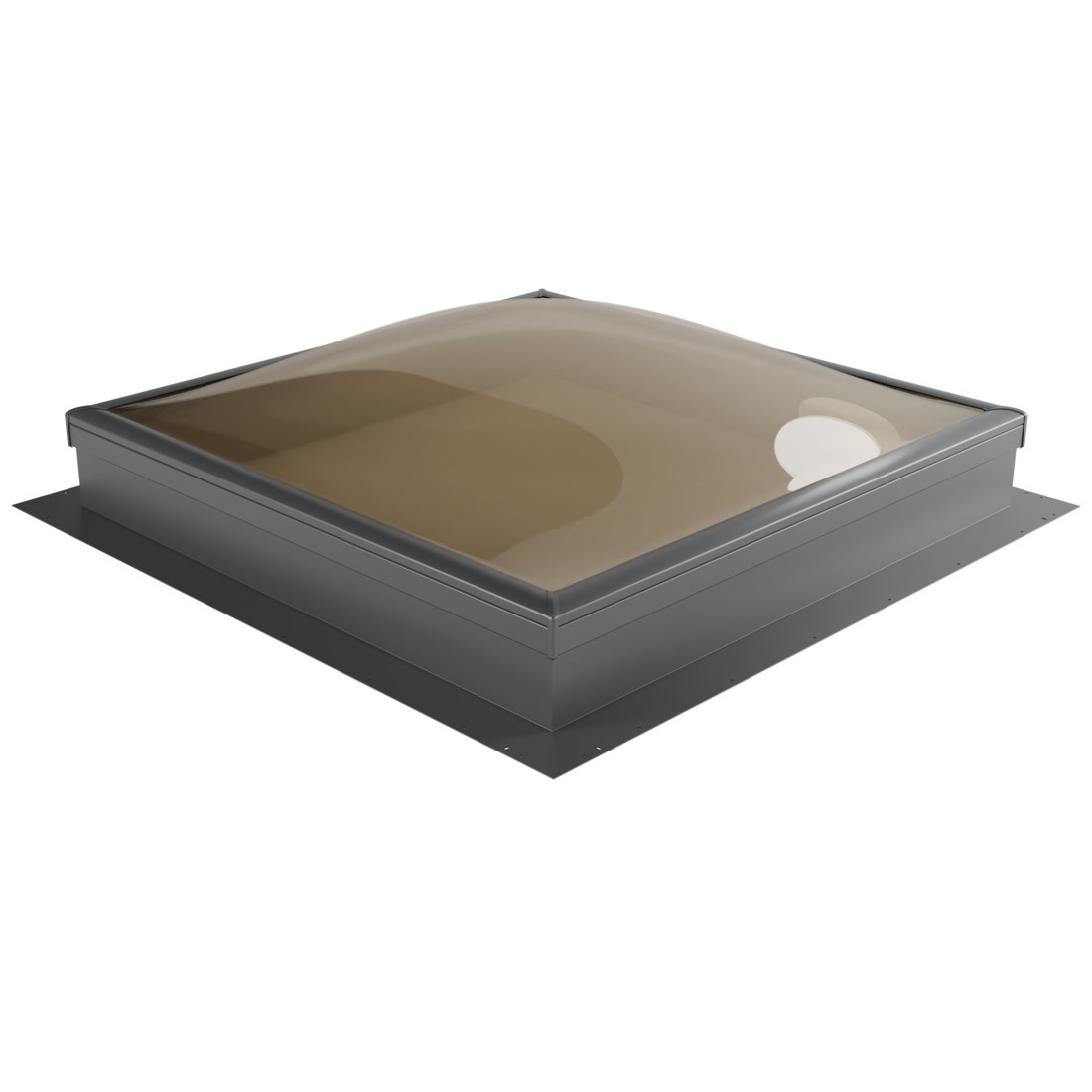

VELUX SFHD High Pan Polycarbonate Double Dome Self Flashed Skylight
Polycarbonate domes provide superior impact resistance and are ideal for areas prone to severe weather conditions including hurricanes and extreme heat, so they are best suited for homes in Gulf Coast and southern border states.- Features an increased 6.25 inch pan height, ideal for tile roof installation
- Standard bronze tinted outer dome over clear inner dome for reduced solar heat gain and glare
- Can choose white tinted outer dome over clear inner dome for improved light diffusion
- Bronze dome features neutral gray aluminum frame; white dome comes with mill finish frame
- 5-year hail warranty
- Impact version (20BCI) has Miami-Dade County approval
- Pre-finished white interior
- Mounts directly to the roof deck over a rough opening
- Designed to be installed on flat or sloped roofs with a pitch between 0-60 degrees
- Custom sizes available with rough opening (inches) between minimum 22.5 x 22.5 and maximum 46.5 x 72.5
SFHD Skylight Sizes
| SFHD Size Code | 2222 | 2246 | 3434 | 4646 |
| Rough Opening WxH (in) | 221⁄2 x 221⁄2 | 221⁄2 x 461⁄2 | 341⁄2 x 341⁄2 | 461⁄2 x 461⁄2 |
| Outside Flashing WxH (in) | 305⁄8 x 305⁄8 | 305⁄8 x 545⁄8 | 425⁄8 x 425⁄8 | 545⁄8 x 545⁄8 |
| Dome Options | BCI | BCI | BCI | BCI |
Specifications
Details
|
Dome Color
|
Bronze over clear
|
Operation Type
|
Non-operable/Fixed
|
|
Cladding Type
|
Aluminum
|
Returnable
|
45-Day
|
|
Dome Type
|
Polycarbonate
|
Skylight Mounting Type
|
Self Flashed
|
|
Max. Roof Pitch (degrees)
|
60
|
Min. Roof Pitch (degrees)
|
0
|
Warranty / Certifications
|
Energy Star Qualified
|
Not Qualified
|
Info & Guide
California residents: This product can expose you to Nickel which is known by the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.p65Warnings.ca.gov
